QModem User Guide

This guide provides a comprehensive overview of the QModem package for OpenWRT, including installation, feature descriptions, detailed configuration options based on the source code, and troubleshooting steps.

1. Quick Start

Compilation Method

To build QModem from the source, add the custom feed to your OpenWRT build environment:

# Add the QModem feed source
echo 'src-git qmodem https://github.com/FUjr/QModem.git;main' >> feeds.conf.default

# Update and install the feed packages
./scripts/feeds update qmodem
./scripts/feeds install -a -p qmodem

# (Optional) Force install to overwrite existing drivers/apps
./scripts/feeds install -a -f -p qmodem

# Enter the build configuration menu
make menuconfig

In make menuconfig, navigate to LuCI -> Applications to select the QModem packages.

Finally, build the firmware:

make -j$(nproc)

Software Packages

The QModem suite is modular. Here are the functions of each package:

• luci-app-qmodem (Core): The main package providing the core web interface for modem management, status monitoring, and dialing.
• luci-app-qmodem-sms: Adds an SMS interface to send and receive text messages.
• luci-app-qmodem-mwan: Integrates the modem with OpenWRT's mwan3 for multi-WAN load balancing and failover.
• luci-app-qmodem-ttl: Provides options to modify the TTL of packets, which can be useful for bypassing carrier tethering restrictions.
• luci-app-qmodem-hc: Support for specific devices with hardware-controlled SIM slots (e.g., HC-G80), allowing SIM switching from the UI.

Installation from Release

When installing pre-compiled .ipk packages from a release, be aware of kernel dependencies.

Important: Your router's kernel version must be compatible with the one used to build the packages. If you encounter errors about kernel version mismatch, you can try to force the installation, but this may lead to instability or non-functional features.

# Example installation
opkg install luci-app-qmodem.ipk

# Example of a forced installation (use with caution)
opkg install luci-app-qmodem.ipk --force-depends

2. Features Introduction

luci-app-qmodem (Core)

The main plugin provides a comprehensive interface for managing your modem.

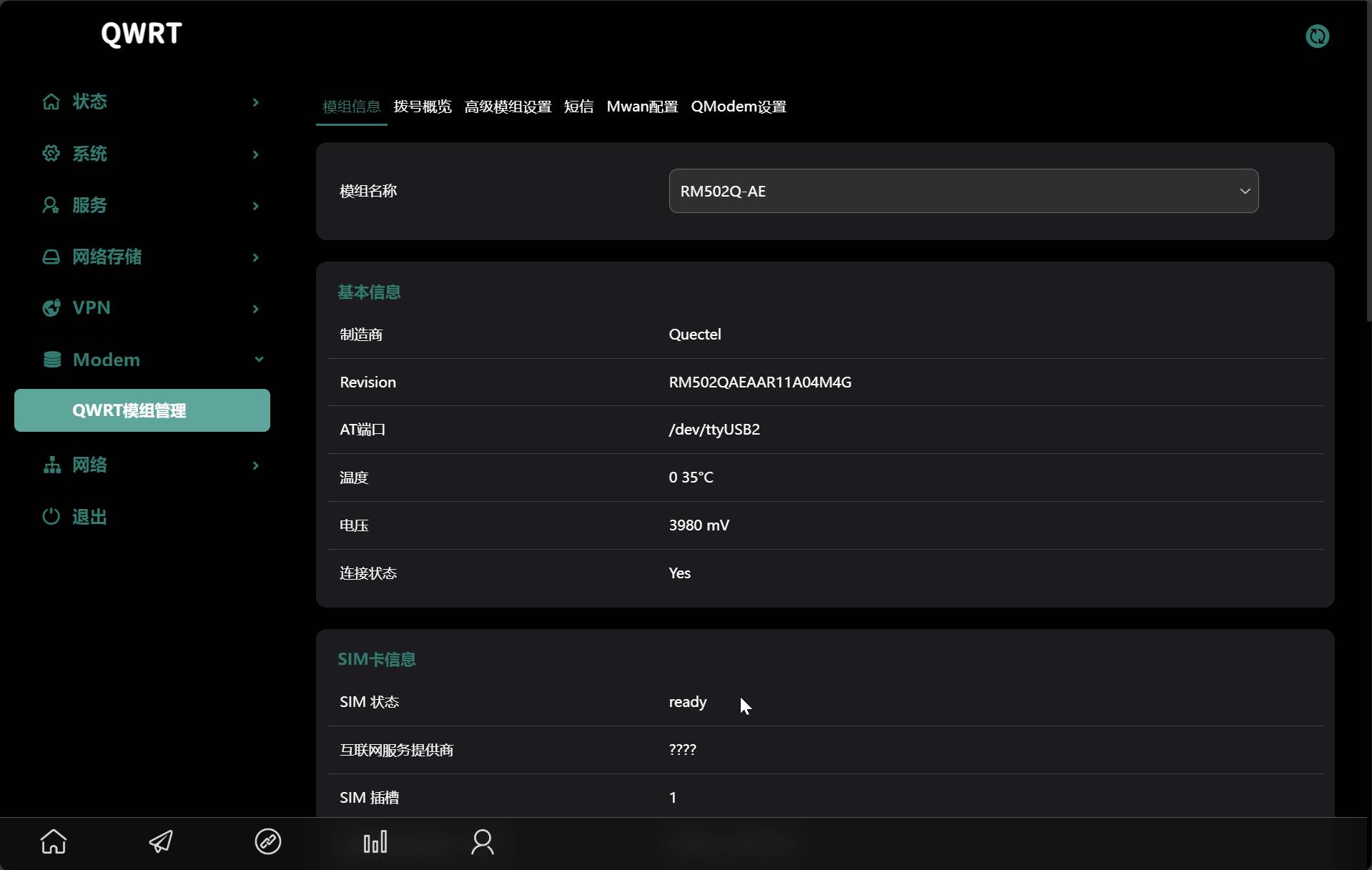

• Modem Information: Displays detailed status including manufacturer, model, firmware, IMEI, signal quality (RSSI, RSRP, RSRQ, SINR), and network registration details.
• Dialing Control: Allows you to configure and control the modem's data connection.

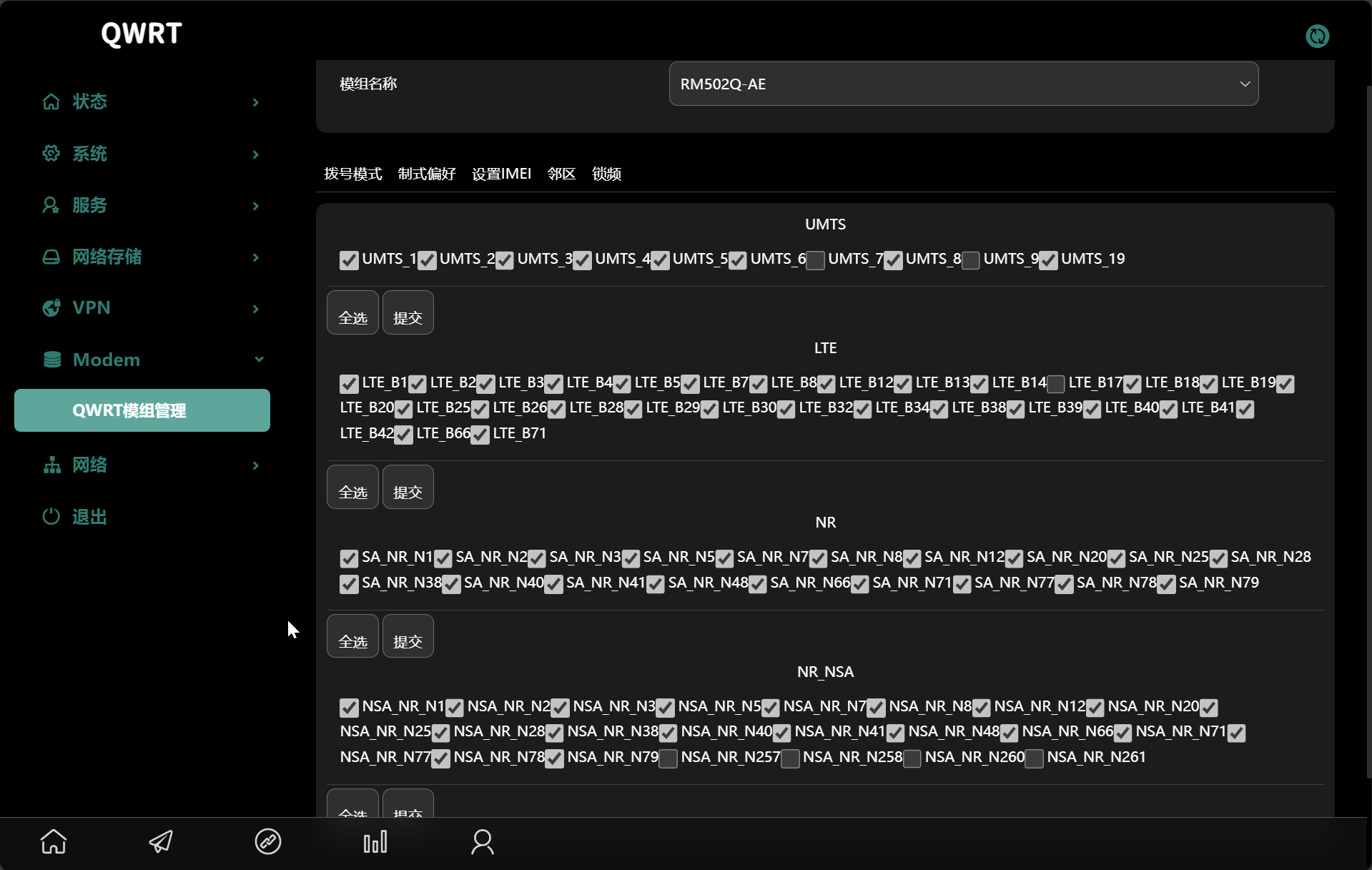

• Advanced Debugging: Offers tools for band locking, cell locking, and sending custom AT commands.

luci-app-qmodem-sms

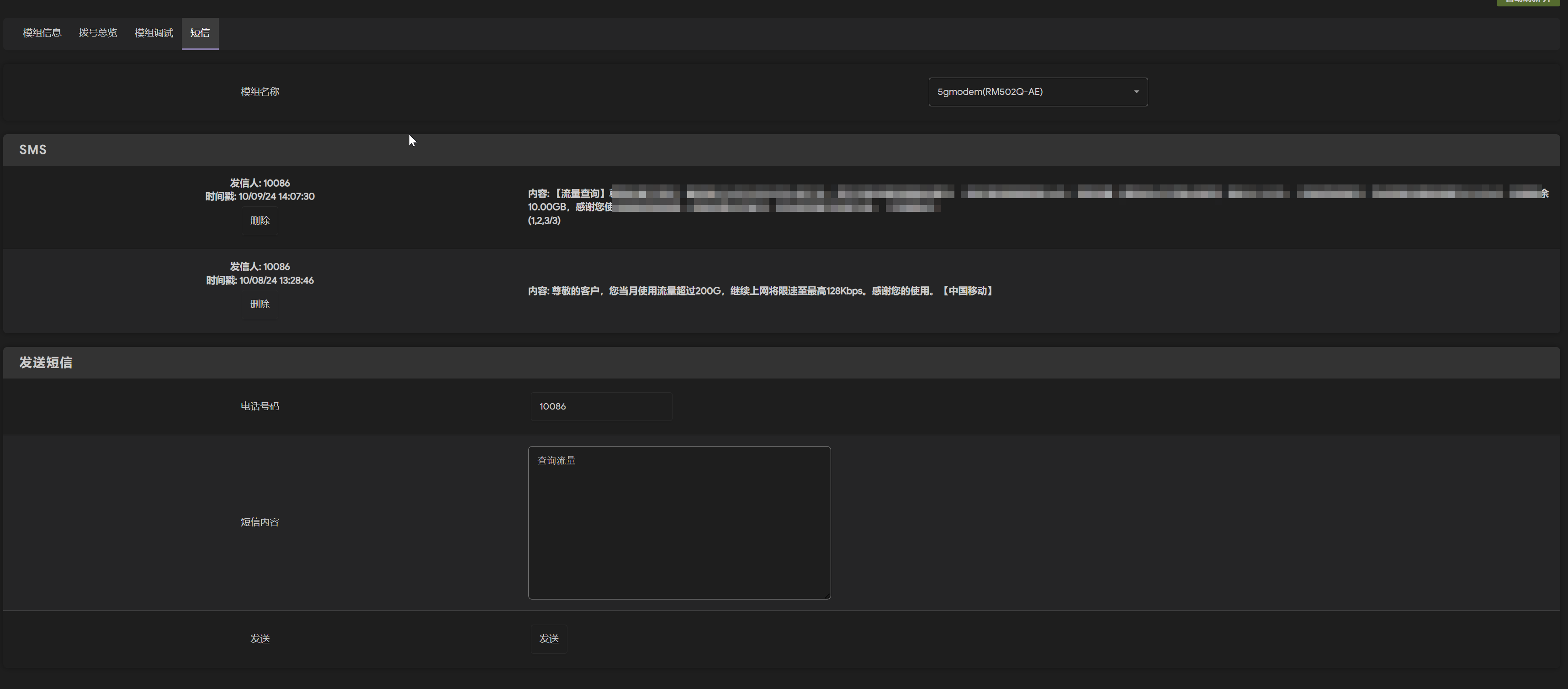

Adds a complete SMS portal to the LuCI interface.

• Send and receive SMS messages.
• View message history.
• Supports PDU mode for raw message sending.

luci-app-qmodem-mwan

This plugin configures the modem as a WAN interface for mwan3 (Multi-WAN).

• Set up load balancing rules to distribute traffic across multiple internet connections.
• Configure failover to automatically switch to a backup connection if the primary one fails.

luci-app-qmodem-ttl

Allows you to modify the Time-To-Live (TTL) value of IP packets. This is sometimes used to prevent carriers from detecting and throttling hotspot or tethering data usage.

luci-app-qmodem-hc

Provides a UI for switching between two SIM cards on specific hardware models that use GPIOs to control the active SIM slot.

3. Configuration Options

This section details the configuration options available within the QModem LuCI interface, as defined in the source code.

Modem Device Configuration (qmodem.modem-device)

These settings are specific to each detected modem.

Option	Type	Description
Fixed Device (is_fixed_device)	Flag	If enabled, the modem's configuration will not be updated automatically on connection/disconnection events.
Slot Path (slot)	List	The physical USB or PCIe slot path the modem is connected to.
Interface Type (data_interface)	List	The connection interface type (USB or PCIe).
Alias (alias)	Text	A custom, user-friendly name for the modem.
Soft Reboot (soft_reboot)	Flag	Enables a soft reboot of the modem instead of a full power cycle.
PDP Context Index (pdp_index)	Integer	The PDP context index to use for the connection (Default: 1).
Manufacturer (manufacturer)	List	The modem's manufacturer (e.g., Quectel, Fibocom).
Platform (platform)	List	The modem's chipset platform (e.g., SDX55, SDX62).
AT Port (at_port)	Text	The device path for the AT command port (e.g.,/dev/ttyUSB2).
Supported Modes (modes)	List	The network modes supported by the modem.
Enable (enabled)	Flag	Enables or disables this modem configuration.
Disabled Features (disabled_features)	List	Allows you to hide unsupported features (e.g., band locking, SMS) from the UI for this modem.
Band Config (wcdma_band, lte_band, etc.)	Text	Specifies the bands to use for locking (e.g., "1/3/5").
Post Init / Pre Dial Delays	Integer	Time in seconds to wait after initialization or before dialing to execute custom commands.
Post Init / Pre Dial AT Commands	List	A list of custom AT commands to execute at different stages of the connection process.

Dialing Configuration (qmodem.modem-device)

These settings control the data connection profile.

Option	Tab	Type	Description

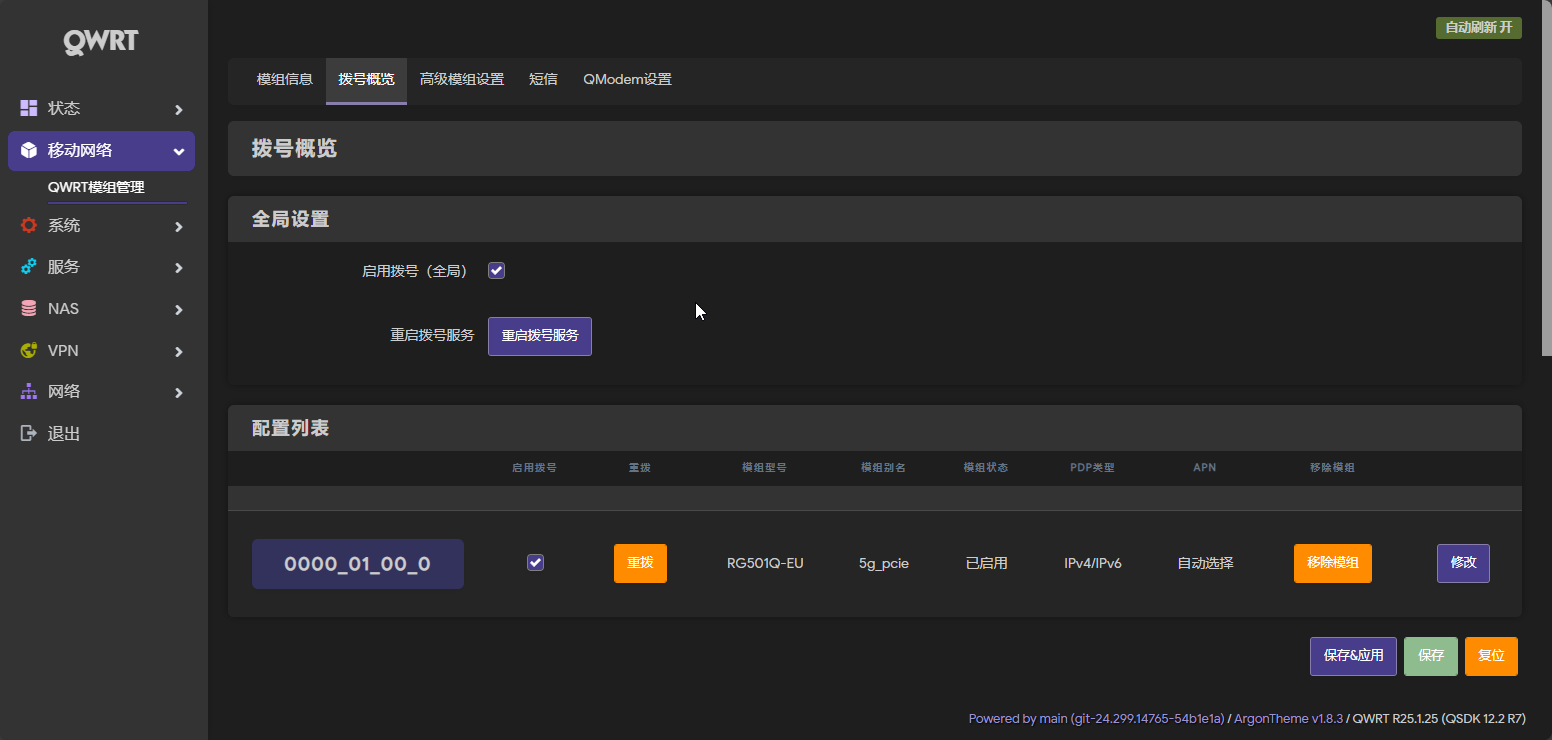

Enable Dial (enable_dial)	General	Flag	Master switch to enable or disable the dialing functionality for this modem.
Modem Alias (alias)	General	Text	A custom name for this dialing profile.
AT Port / SMS AT Port	General	List	Selects the validated AT port for data and SMS functions.
DNS (dns_list)	General	List	A list of custom DNS servers to use. If empty, the carrier's DNS is used.
Bridge Mode (en_bridge)	Advanced	Flag	Enables bridge/passthrough mode. (Note: Only available for certain Quectel 5G modems).
Do Not modify resolv.conf (do_not_add_dns)	Advanced	Flag	Preventsquectel-cm from automatically adding DNS servers to /etc/resolv.conf.
RA Master (ra_master)	Advanced	Flag	If enabled, this interface becomes the IPv6 Router Advertisement master. Only one interface can be master.
Extend Prefix (extend_prefix)	Advanced	Flag	If enabled, the delegated IPv6 prefix will be applied to the LAN zone.
PDP Type (pdp_type)	Advanced	List	The IP protocol for the connection (IPv4, IPv6, or IPv4/IPv6).
APN / APN 2 (apn, apn2)	Advanced	Text	The Access Point Name for SIM slot 1 and 2. Can be left blank for auto-detection.
Authentication Type (auth)	Advanced	List	The authentication protocol (NONE, PAP, CHAP, or PAP/CHAP).
PAP/CHAP Username/Password	Advanced	Text	Credentials for authentication, if required.
PIN Code (pincode)	Advanced	Text	The SIM card's PIN code, if it is locked.
Metric (metric)	Advanced	Integer	The route metric for this interface. A lower value gives it higher priority.

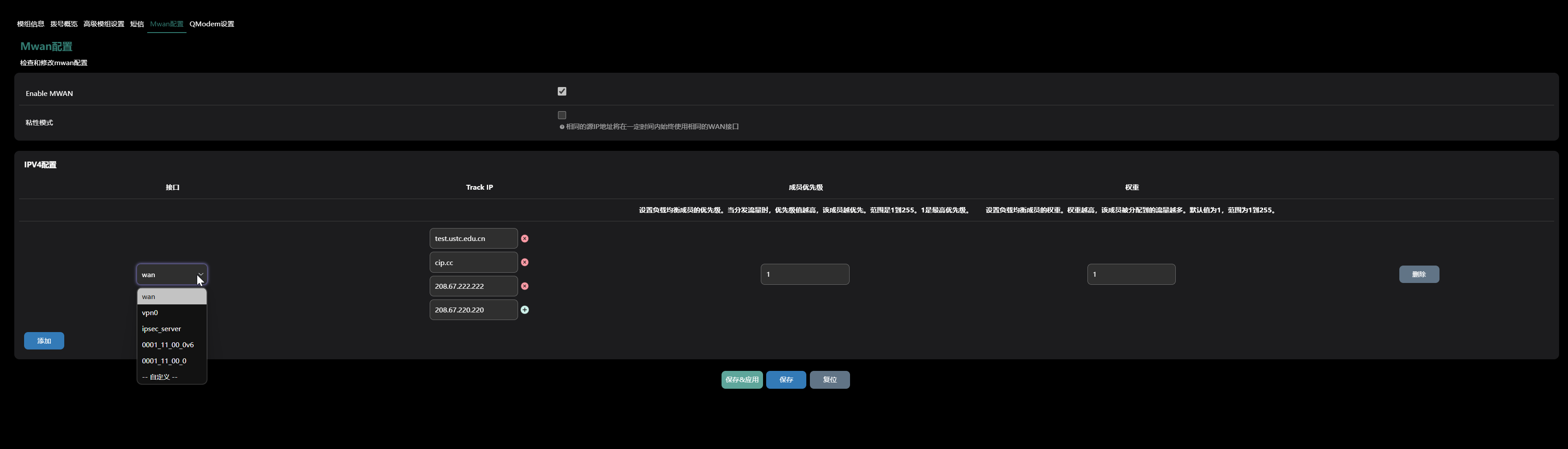

MWAN Configuration (qmodem_mwan)

Option	Type	Description
Enable MWAN (enable_mwan)	Flag	Master switch to enable or disable MWAN functionality.
Sticky Mode (sticky_mode)	Flag	When enabled, connections from the same source IP will always use the same WAN interface.
Sticky Timeout (sticky_timeout)	Integer	The duration in seconds to maintain a sticky connection.
Member Interface (member_interface)	List	The network interface to add to the MWAN pool.
Track IP (member_track_ip)	List	A list of IP addresses to ping to monitor the health of the connection.
Priority (member_priority)	Integer	The priority of the interface (1-255). A lower number is higher priority.
Weight (member_weight)	Integer	The load balancing weight (1-255). A higher number receives more traffic.

TTL Configuration (qmodem_ttl)

Option	Type	Description
Enable (enable)	Flag	Enables or disables TTL modification.
TTL (ttl)	Integer	The TTL value to apply to packets (e.g., 64, 128).

4. Troubleshooting

When you encounter issues, providing detailed logs is crucial for diagnosis. Please follow these steps to collect information before creating a GitHub Issue.

Required Information Collection

Before creating a GitHub Issue, please collect the following information by executing the specified commands via SSH:

1. Basic System Information

Provide your router model, OpenWRT version, and modem model in the issue description.

2. Module Configuration

uci show qmodem
# Show module configuration

3. Network Configuration

uci show network
# Show network configuration

4. System Logs

logread
# View system logs

5. Kernel Logs

dmesg
# View kernel logs

6. USB Device Information (for USB modems only)

lsusb
# List USB devices

7. PCIe Device Information (for PCIe modems only)

lspci
# List PCIe devices

8. Module Scanning (if scanning issues occur)

/usr/share/qmodem/modem_scan.sh scan
# Scan modules

Creating a GitHub Issue

1. Go to the QModem GitHub Issues page.
2. Use the "Bug Report" template.
3. Fill in all the required sections with the information collected above.
4. Paste the command outputs into the corresponding collapsible sections in the template.
